How to Apply a Waterproof Render Below the Damp Course: A Step-by-Step Guide

Welcome back to another episode of Daniel Lee Plastering and Rendering! Today, we’re focusing on a critical aspect of rendering: creating a waterproof finish below the damp course. Proper damp course protection is essential for keeping your building structure strong and moisture-free. In this guide, we’ll take you through each step to ensure your rendering process below the damp course is effective and long-lasting.

1. Understanding the Damp Course

The damp course is a horizontal barrier within walls designed to resist moisture rising from the ground. To ensure it remains watertight, especially in areas below this barrier, you need to apply a strong waterproof render. A well-maintained damp course prevents water from seeping into the building, protecting both the structure and interiors from potential damage.

2. Prepping the Surface and Adjusting the Damp Course

Our first task was to check the existing damp proof membrane (DPM) levels across the property. We discovered that the DPM on the extension was at a higher level than on the original property, which was two bricks lower. We raised the entire damp course to ensure it was uniform across the building, providing consistent protection.

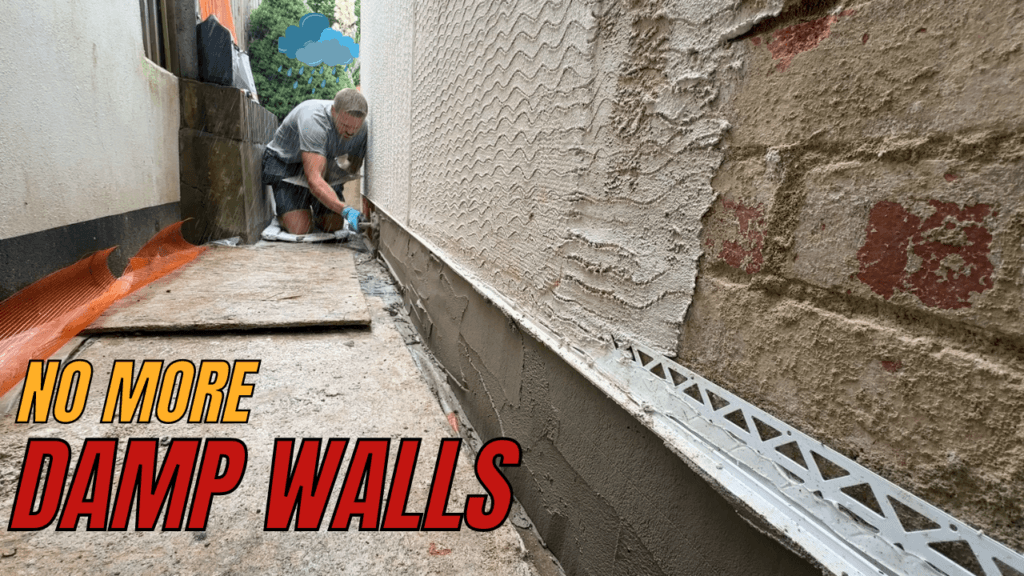

3. Strengthening with Mesh

Next, we pre-cut and installed mesh across the damp course area. Mesh reinforcement is crucial as it adds structural integrity to the render, reducing the risk of cracking over time. Wrapping the mesh around the entire property ensures that all sides are equally strengthened, enhancing the longevity of the render.

4. Applying a Universal Primer for Adhesion

Before applying the render, we used a universal primer to prepare the surface. This step is essential for ensuring that the waterproof render adheres properly to the wall. Skipping this step or using a low-quality primer could lead to peeling or cracking, especially in damp conditions. A thorough coat of primer creates an optimal surface for the render to bond securely.

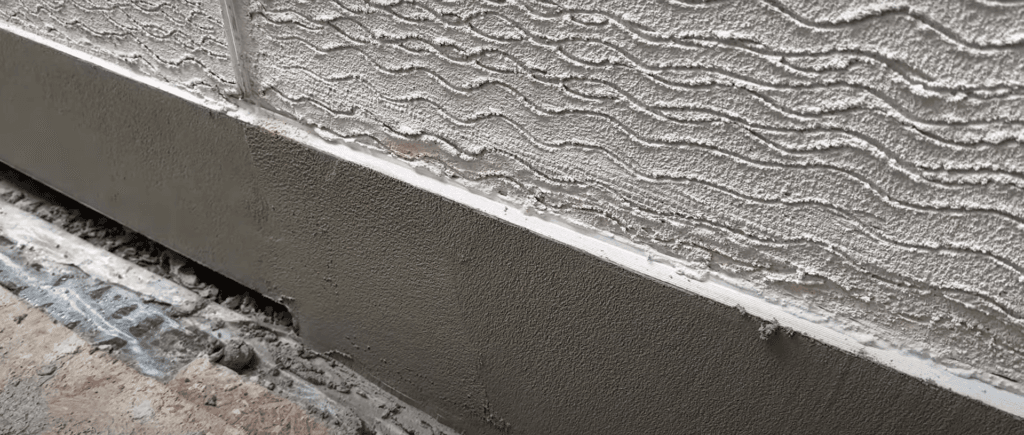

5. Mixing and Applying the Waterproof Render

After priming, we moved on to mixing a high-strength waterproof render. This type of render is specially formulated to resist moisture penetration, ensuring the wall remains dry and protected. Here’s our approach for an even application:

• Scratch Coat: We started by applying a scratch coat. This first layer serves as a base and helps the topcoat adhere.
• Topcoat Application: After the scratch coat set, we applied the topcoat and smoothed it with a trowel and a plastic float. This layer ensures a uniform, waterproof finish.

For the final look, we’re adding a black mosaic silicon render, which gives the surface an attractive and resilient finish. Silicon renders are known for their breathability and resistance to mold, which is ideal for areas exposed to moisture.

6. Working in Rainy Weather

Rain can be a real challenge in rendering, especially in areas prone to moisture issues. Today, we worked in light rain but took precautions to prevent water from affecting the freshly applied render. Here’s how we managed:

• Temporary Sheeting: We set up temporary sheeting to shield the working area. While this is not a permanent solution, it provides essential protection when working in damp conditions.
• Drying Time and Floating: Due to the moisture in the air, the render needed more drying time. After an hour, we used a power float and then a plastic float to smooth out the topcoat. Floating helps compress the render, giving it a durable finish.

7. Final Touches: Sponging and Smoothing

Once the topcoat started to firm up, we went over the surface with a sponge float. Sponging the render gives it a neat, polished finish, and is an important final step for a professional look. At this point, we were almost done with the application, leaving only a few spots to perfect.

Why a Waterproof Render Below the Damp Course Matters

Applying a waterproof render below the damp course is essential for any property that deals with damp issues. Without this protection, moisture can seep through and damage your walls, leading to peeling paint, mold, and other issues that compromise both aesthetics and structural integrity.

Key Takeaways

• Consistency in DPM Levels: Ensure uniformity across old and new structures to avoid water seepage.
• Mesh for Strength: Reinforce the render with mesh for long-term durability.
• Prime for Adhesion: Apply a high-quality primer to ensure the render bonds effectively.
• Weather Precautions: Use temporary solutions like sheeting to protect your render from moisture during application.
• Proper Tools: Use floats and sponges to create a smooth, professional finish.

By following these steps, you can achieve a watertight, durable finish that keeps moisture out and maintains the health of your building’s walls. Stay tuned for more tips and guides from Daniel Lee Plastering and Rendering!
